CRX

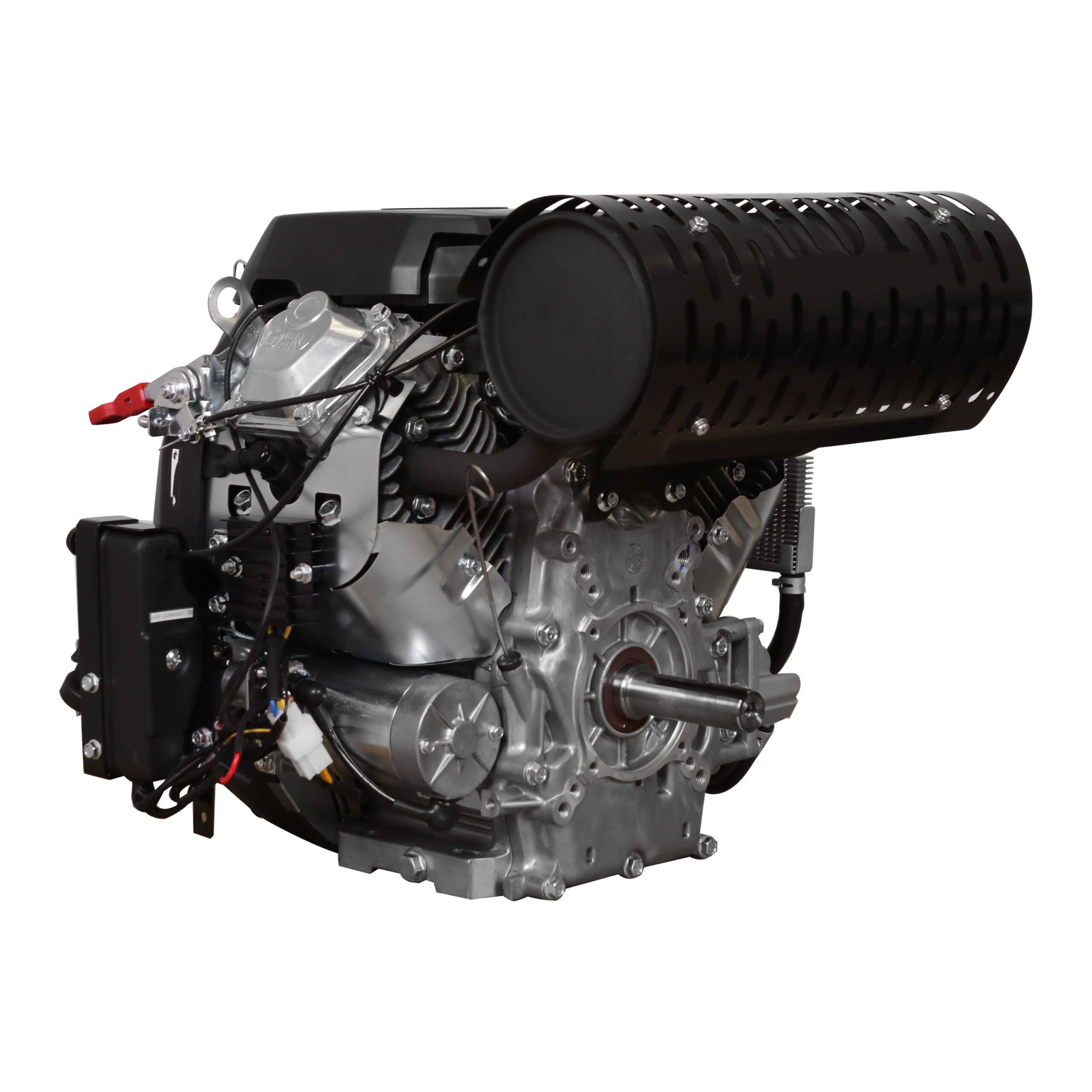

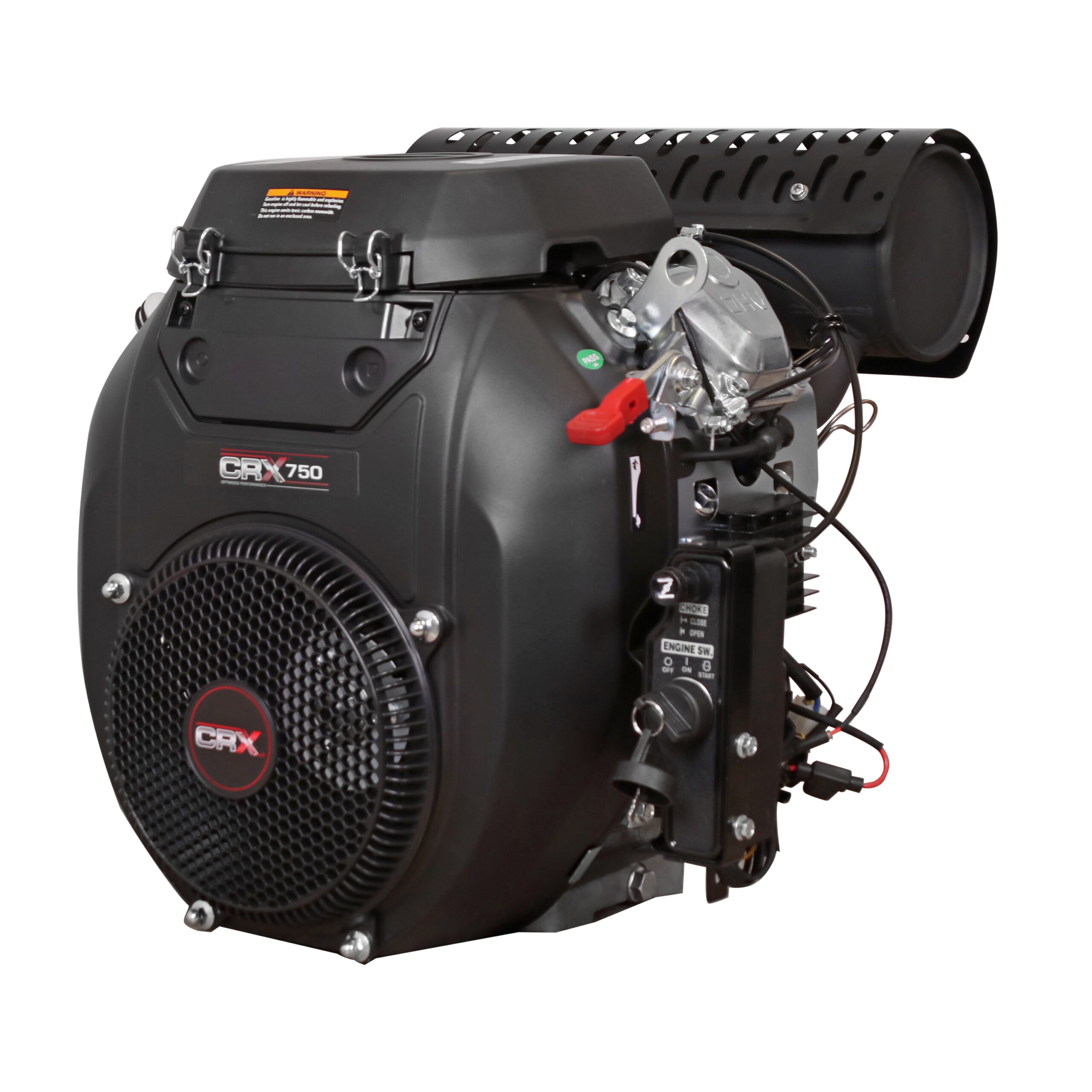

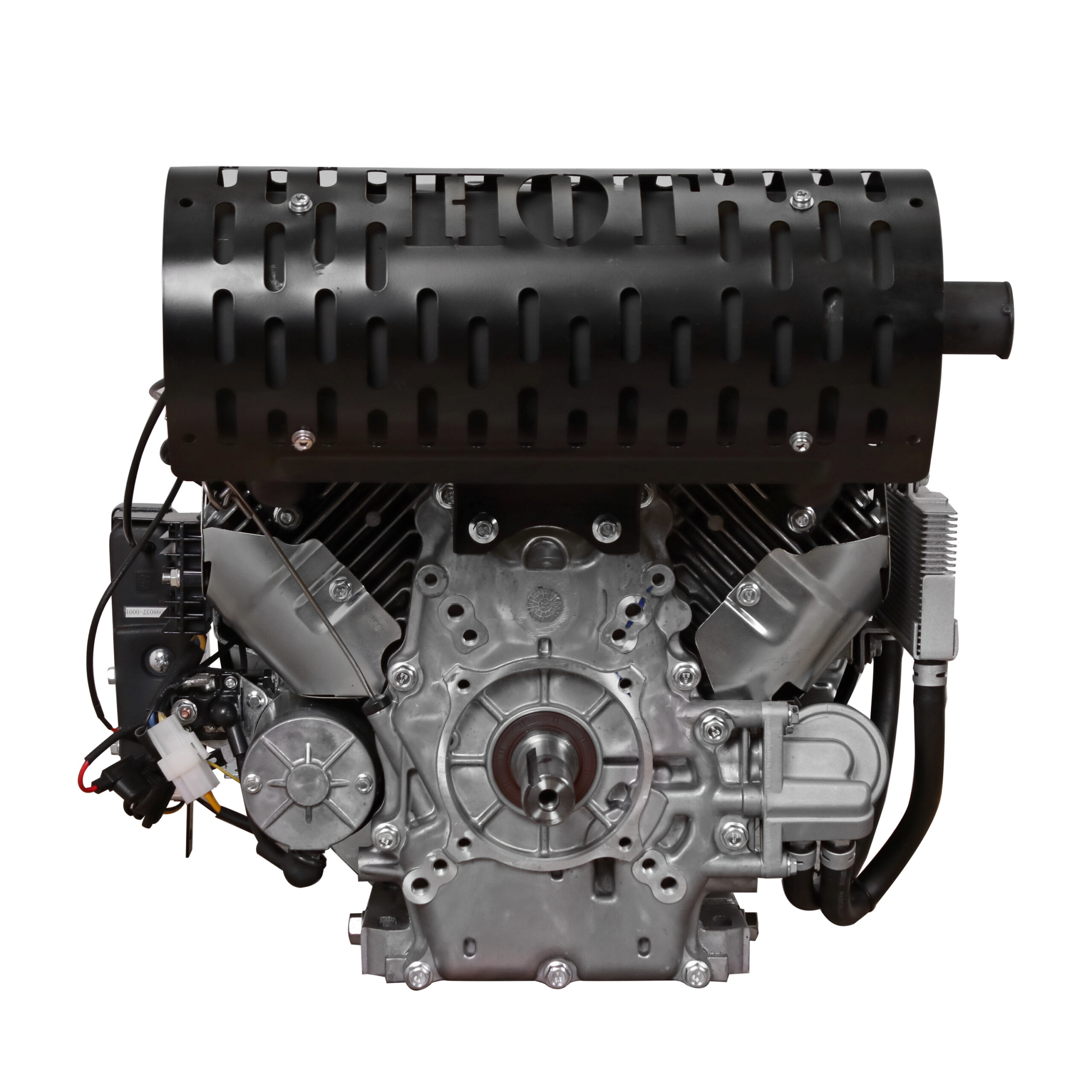

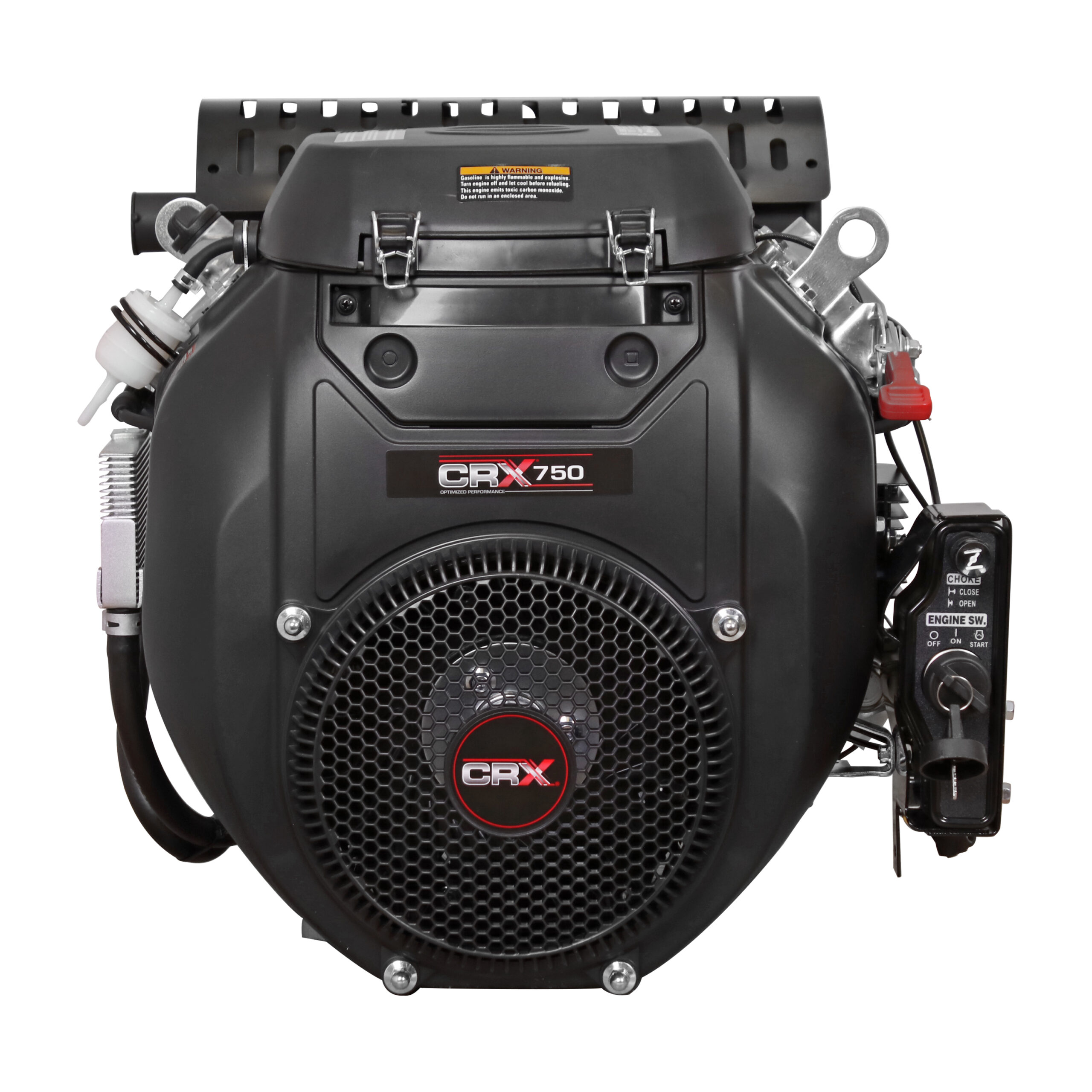

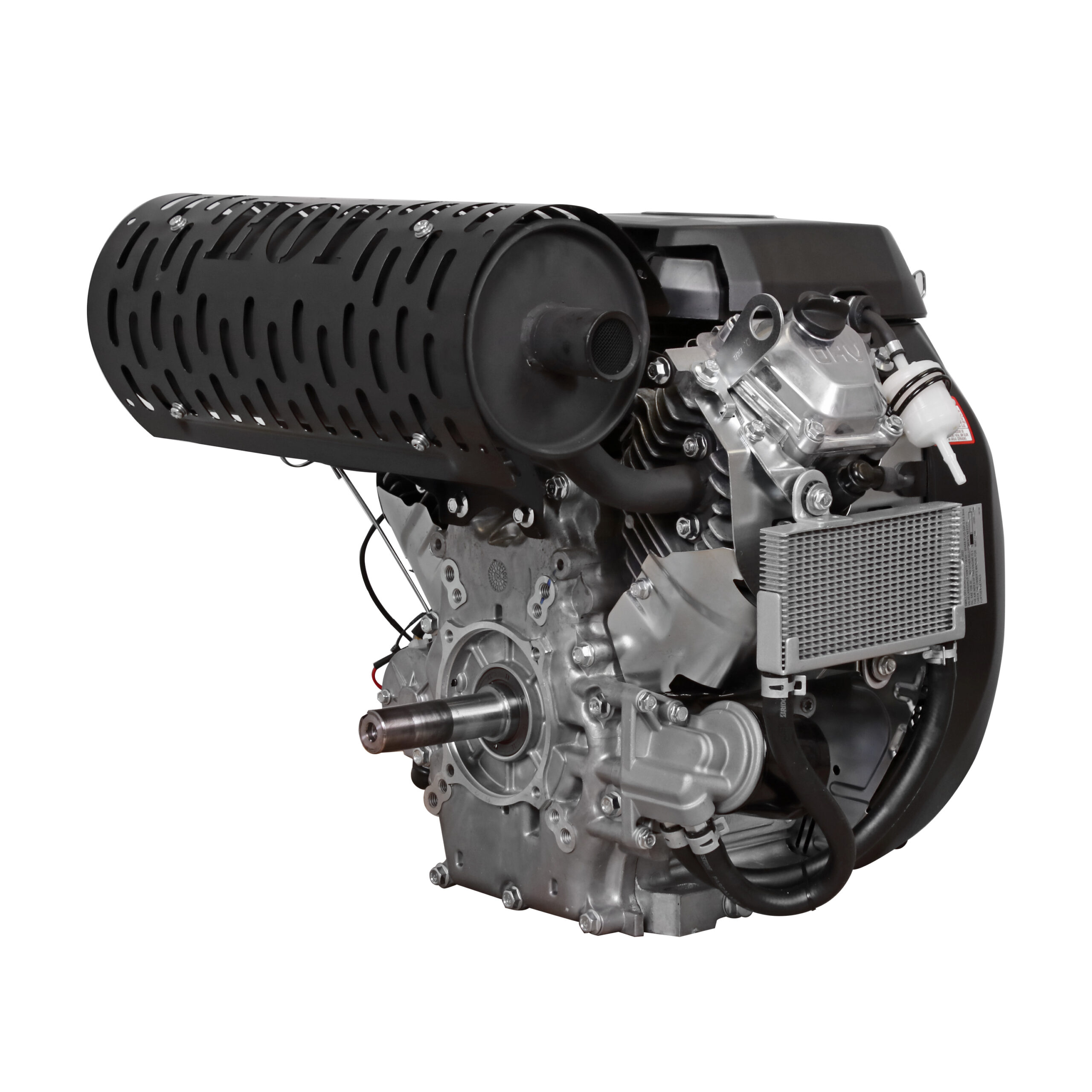

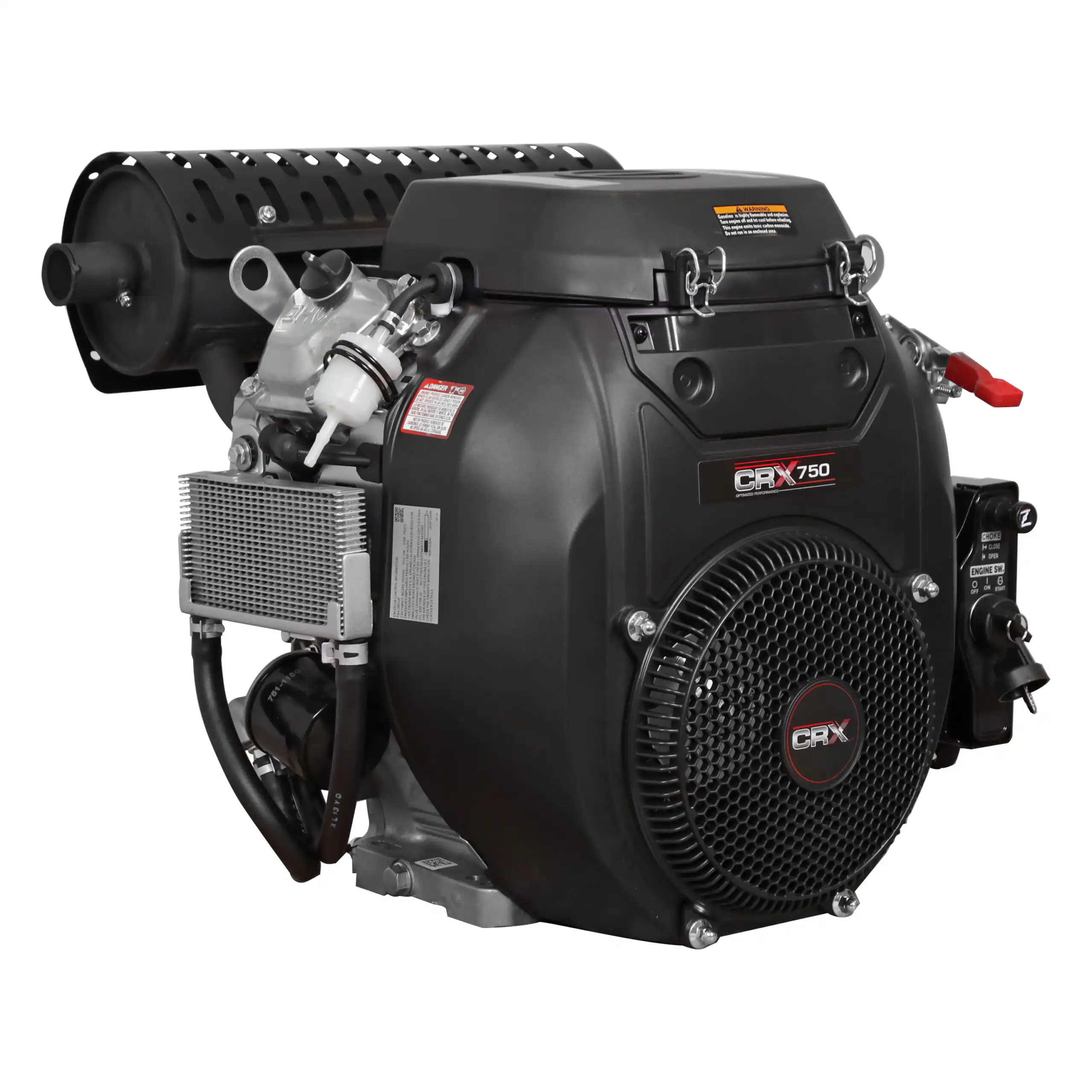

CRX 750
Web-product-logo

Engine Specifications

Max Output (HP)

21.45 HP @ 3600 RPM

Max Output (kW)

16 kW @ 3600 RPM

Engine Type

Air-cooled

Cylinders

2

Fuel Type

Petrol

Variable Speed

Yes

Fixed Speed

Yes

Displacement

Litres

Bore x Stroke

82 x 71 mm

Combustion

Aspiration

Natural

Irrigation Pack available

No

Powerpack available

No

The CRX® 750 engine provides the power you need for those tough commercial/industrial applications. Like all of our V-Twin engines, this model features full pressure lubrication, oil cooler and filter, heavy-duty muffler, advanced air filtration system and a 20A alternator.

CRX® professional engines are designed to meet and exceed the rigorous demands of every job site. These engines feature innovative technology to enhance performance, extend the life of your product and increase productivity.


FEATURES

  • Industrial tough mufflers and shields designed for improved sound quality and lower sound level

  • Commercial-style advanced element air filtration system helps maintain optimal power on dusty work sites

  • Cast iron cylinders decrease friction between mating parts as well as which helps keep the engine cool during extreme applications

  • Precision-machined, forged iron crankshaft designed for low vibration and toughness required for the most extreme duty cycles

  • Low oil auto-shutdown sensor prevents damage to the engine when oil volume is low

  • Oil filter and external oil cooler extends the life of the oil and prevents premature wear and tear on critical mechanical parts



COMMON ENGINE APPLICATIONS

• Trailer mounted Pressure Washers

• Commercial Lawn and garden equipment

• Construction / Industrial equipment

• Agricultural equipment

• Water pumps

• Forestry equipment

V-TWIN ENGINES

Big jobs need big power, and the CRX V-Twin Engine Line is the perfect power match for commercial/industrial applications. Built to last with premium features such as full pressure lubrication, oil cooler and filter, heavy-duty muffler, advanced air filtration system and a 20A alternator. If you’re looking to maximize your machine’s power output, CRX meets the demand for reliability and performance, every time you need it.

*Net power levels per SAE J1349
*Weights are approximate and can vary with options

THE CRX® ADVANTAGE

crx vtwin engines

Oil filter and external oil cooler extends the life of the oil and prevents premature wear and tear
on critical mechanical parts. Exclusively available on CRX V-Twin engines.
Some features not available on all models. Please check product specifications for full feature list.
EPA Compliant. CARB optional on most models except CRX1000.

WORLD CLASS DESIGN
AND INNOVATION

The CRX® engine line was born out of combined years of industry leading engineering experience & innovation from FNA Group, Inc.

We are a single-source, vertically integrated company that understands the importance of power, performance, reliability and continuously meet the needs of residential consumers and professionals worldwide.

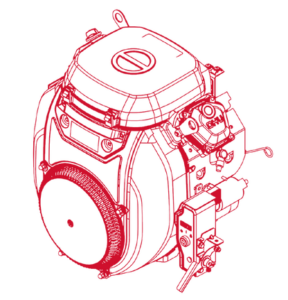

CRX Engine Drawings
