Yanmar

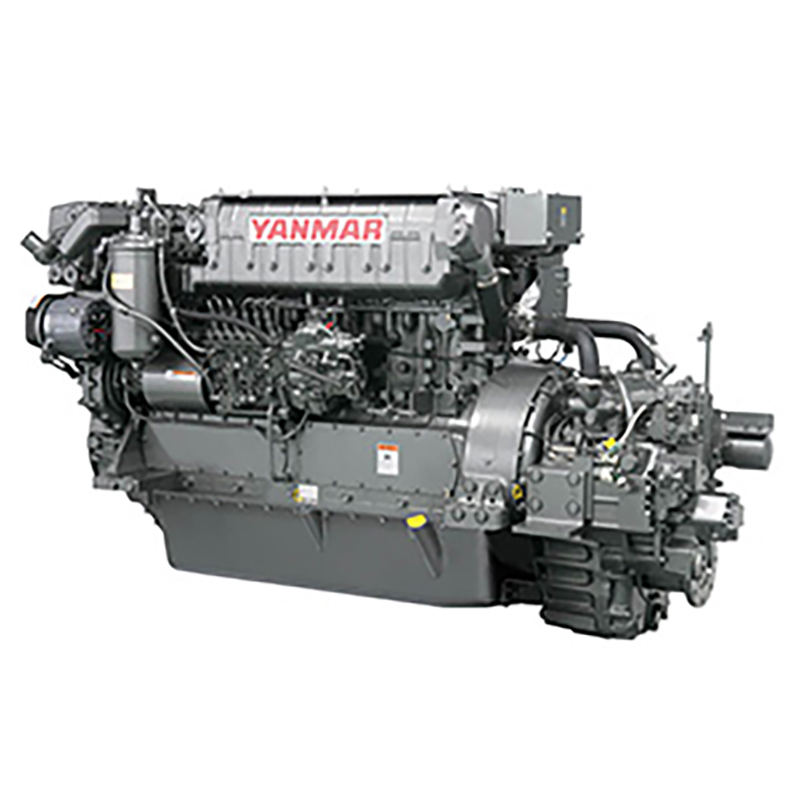

6HYM-WET (M)
6HY Series

Engine Specifications

Application

Commercial Engine

Power Output (HP)

600

Power Output (kW)

441

Rated Speed

2100 RPM

Displacement

13.733L

Cylinders

6

Bore x Stroke

132.9mm x 165mm

Aspiration

Turbocharged & Intercooled

Dry Weight

1385 kg

Dimensions

1556mmx 1014mm x 1133mm

Controls

Mechanical

Certifications

IMO Tier 2

Series Information

The 6HY range is a large diesel engine featuring massive power, designed to fill a wide range of commercial needs while being easier on the environment.

Features

  • 6-cylinder direct injection engine
  • Twin turbocharger + intercooler
  • Available with marine gear or without marine gear
  • 4 valves per cylinder for higher combustion efficiency
  • IMO Tier II emission compliant



A Tough, Reliable Engine

Toughness and reliability have moved ahead in large steps thanks to the steady progress of technology. Modern technology makes possible the hi-tech iron block and head, the special surface treatment of the cylinder liners, the advanced design of the water cooled manifold – in fact a whole host of new features which add sustainability to the overall toughness and reliability of this engine.

This engine features a stronger cylinder block and cylinder head, stronger head bolt bosses, stronger cylinder liner rack for uniform rack face pressure, stronger main bearing caps. Cylinder wear and lube oil consumption are both reduced by the specially treated cylinder liners, and by the nitrided SUS rings.

Design

Light weight, compact with a flat top and a low profile, the installation of this large capacity, high power engine is now possible in smaller vessels.

Easier Routine Inspection, Easier Maintenance

Large inspection windows on the side of the block allow in-site replacement of pistons. Full mechanical engine management avoids the chance of delicate and expensive electronics failing in hot, marine engine room conditions. Maintenance is simplified, inspection and replacement costs are lower. Reliability and durability are enhanced. Engine is user friendly.

* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions. Please consult your Authorised Dealer or Power Equipment Account Manager for all technical information.
