Yanmar

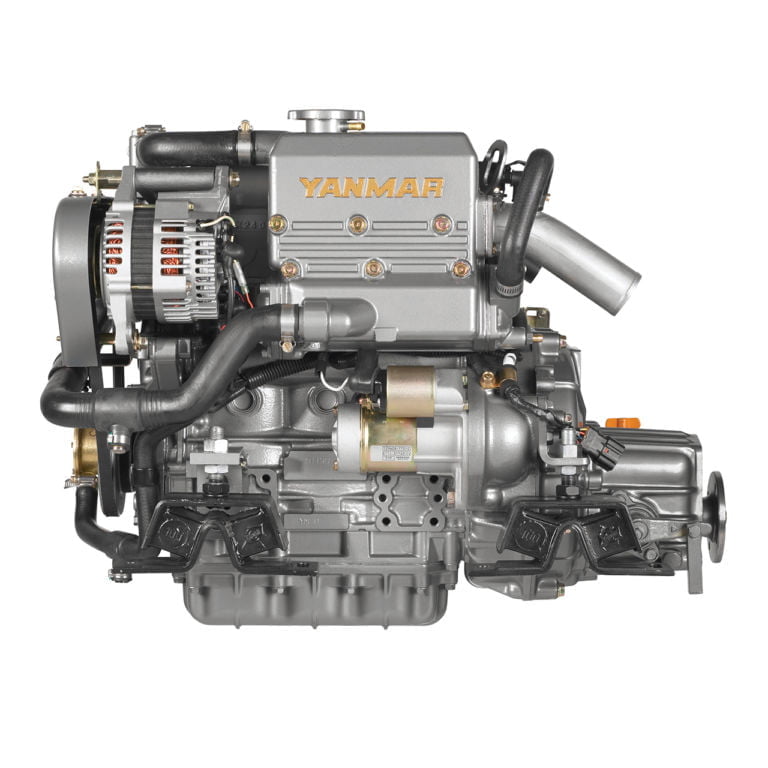

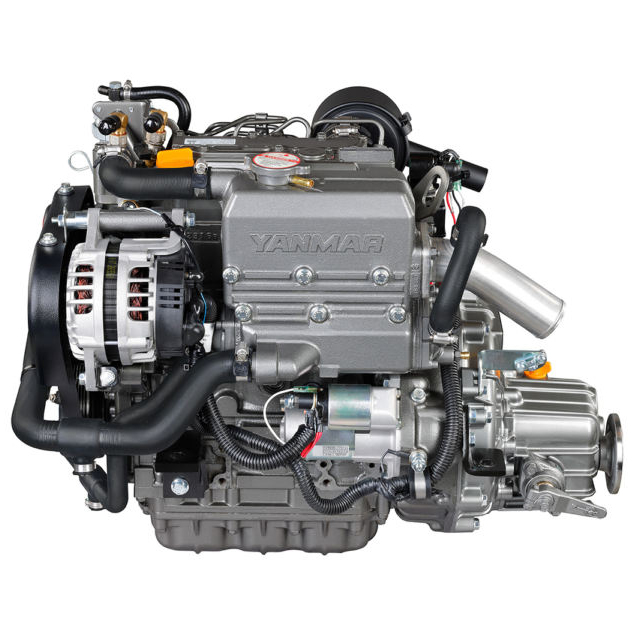

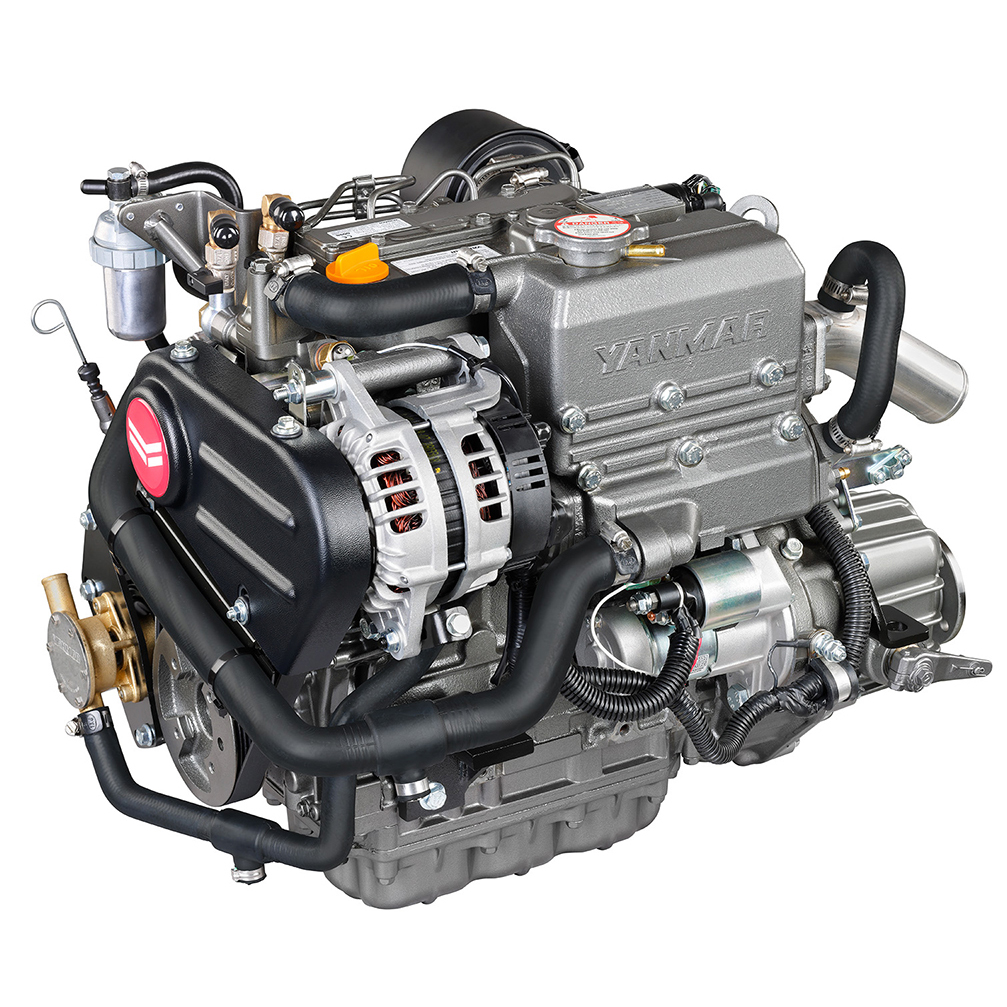

3YM30AE
GM/YM Series
Yanmar Australia

Engine Specifications

Application

Sailing Engine

Power Output (HP)

29

Power Output (kW)

21.3

Rated Speed

3200 RPM

Displacement

1.266L

Cylinders

3

Bore x Stroke

80mm x 84mm

Aspiration

Natural

Dry Weight

127kg

Dimensions

715 mm x 485 mm x 545 mm

Controls

Mechanical

Certifications

RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC

Series Information

GM/YM SERIES

With the largest displacement and smallest dimensions in their class, these thoroughbred workhorses provide sure-fire auxiliary power for sailboats and durable primary power for small motorboats. The naturally aspirated new generation YM series continues the Yanmar tradition of providing boaters with superior technology – quiet and compact power that can be relied upon.

Yachtsmen looking for extra power without extra size and weight can find it in Yanmar’s new 1GM10 diesel engine. Yanmar have up-powered their popular 1GM model by 20% to re-create its trusty performance at a higher 6.7kW, with negligible change in size, weight and shape.

The GM/YM Series engines are available in both shaftdrive and saildrive configurations.

Best in Class Diesel Power

Now with more displacement, more torque, more amps, yet even quieter, with less smoke than ever, EPA Tier 2 emission regulations and BSO/SAV stage 2 compliant. The flat power curve allows you to choose the propeller size to best match your application.

The naturally aspirated new generation YM series continues the Yanmar tradition of providing boaters with superior technology – quiet and compact power that you can rely upon.

The latest lightweight propulsion developments are the 2YM15, 3YM20 and 3YM30AE models. The 3YM20 and 3YM30AE were designed as a direct upgrade for the legendary 2GM20 and 3GM30E models they replace. The new 2YM15 is an additional model to what is recognized already as the most complete line up of marine engines in the business. With the added benefit of simplified maintenance due to the new location of the sea-water pump and all other service points being together near the engine front, these units no doubt are already on track to be recognized as the best-in-class auxiliary or primary power for sailboats and tough, reliable primary power for small motor craft.

Compatible Products

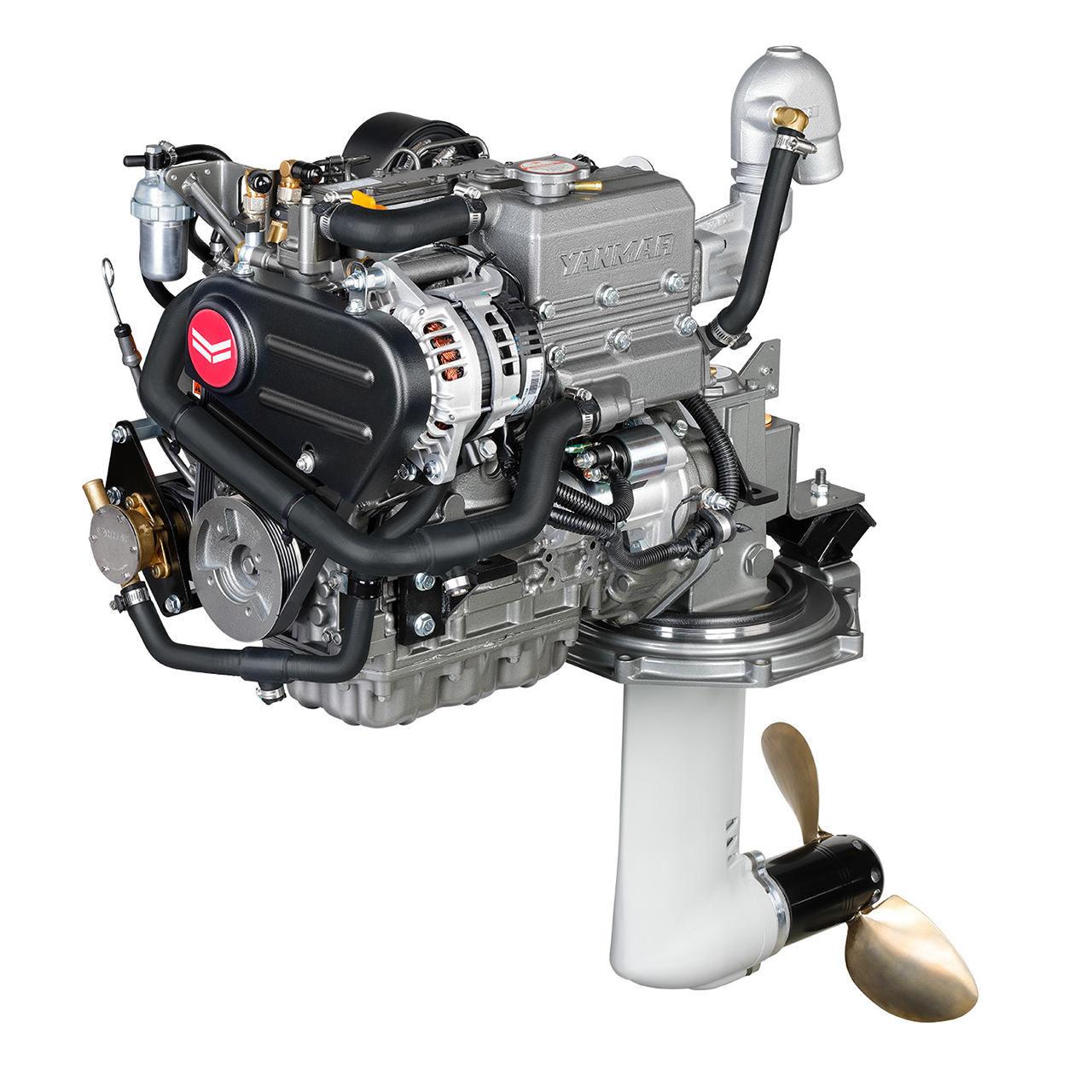

Yanmar SD25 Saildrive

Please contact your nearest dealer or Power Equipment Account Manager for a full list of available options, installation requirements and compatible products.

* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions. Please consult your Authorised Dealer or Power Equipment Account Manager for all technical information.
