Yanmar
3JH40
JH-CR Series
Yanmar Australia

Engine Specifications

Application

Sailing Engine

Power Output (HP)

40

Power Output (kW)

29.4

Rated Speed

3000 RPM

Displacement

1.642 L [100 cu in]

Cylinders

3 cylinder

Bore x Stroke

88mm x 90mm

Aspiration

Natural

Dry Weight

192 kg

Dimensions

774 x 580 x 632 mm

Controls

Mechanical (Optional VC10 system)

Certifications

RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS

Series Information

The Yanmar JH-CR lineup brings you 5x Best in Class features – Clean, Interconnective, Quiet, Powerful & Fuel Efficient – setting the global standard in sailboat and small craft propulsion. With a range of power ratings across one design, the JH-CR engine is the perfect solution to fit across a wide variety of boats sizes and applications. And with a similar footprint to previous models and competition alike, it is the ideal choice for repowers.

Features

  • Genuine YANMAR-based engine featuring a custom-designed common rail system
  • Advanced fuel injection technology for sailboats and smaller motorboats and commercial vessels
  • Sets the global standard in sailboat and small craft propulsion
  • Wide range of power ratings in one model to fit a variety of applications
  • Versatile control options with mechanical control as standard and option to upgrade to electronic controls





Setting the Global Standard

Utilizing the long-established TNV industrial YANMAR block as the durable foundation, the 4JH-CR marine series incorporates an advanced custom-built Bosch common rail fuel injection system, This brings the advantages of common rail technology to sailboats and smaller craft, exclusively from YANMAR for this horsepower range.

  • JH-CR available in 5 output models – 40, 45, 57, 80, 110 mhp

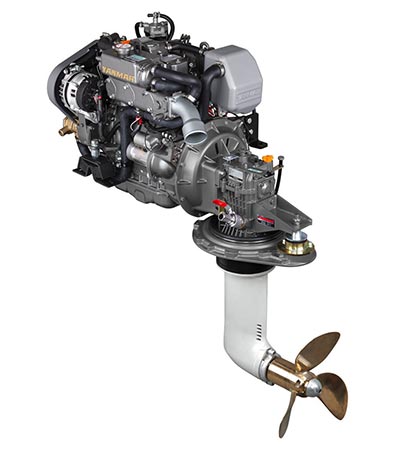

  • All 4JH-CR models compatible with YANMAR SD60 saildrive (except the 4JH110)
  • A proven solution for jet and shaft drives
  • Controlled electronically by YANMAR VC10 Vessel Control System, with up to 3 stations (mechanical controls as standard)
  • SOLAS option and USCG lifeboat approved
  • Certified for recreational and light duty commercial applications



The world’s smallest common rail inboard marine diesel engine

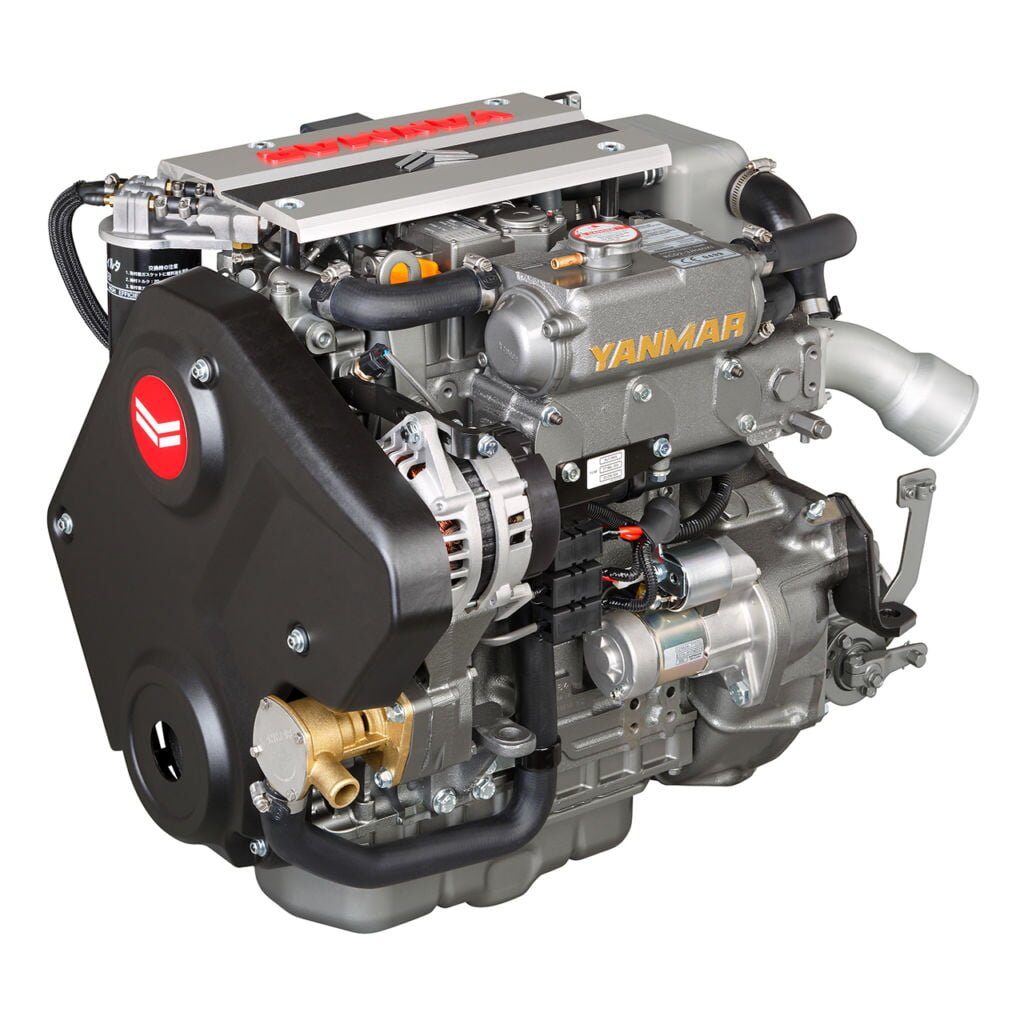

Introducing the new 3JH40, winner of the Miami Innovation Award for the Inboard Engine Category.

The 3-cylinder 3JH40, with an output of 40 mhp, will enable a whole new category of smaller leisure boat owners and commercial vessel operators to benefit for the first time from the efficiency and performance advantages associated with the most recent electronically-managed CR fuel-injection technology.

With an output of 40hp @ 3000 RPM (29.4 kW), the 3JH40 is the smallest common rail inboard marine diesel in displacement, physical size, and weight.

Through common rail technology, the 3JH40 offers minimal fuel consumption and exceptionally low noise and emission levels, exceeding EPA Tier 3 and EU RCD Tier 2 emission regulations for virtually smoke and odour-free operation.

The 4-stroke, water-cooled 3JH40 is an ideal solution for new builds and repowering applications, specifically monohull sailing yachts and catamarans up to 45ft, small motor boats or sloops, and light duty commercial craft.

Compatible Products

Please contact your nearest dealer or Power Equipment Account Manager for a full list of available options, installation requirements and compatible products.

* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions. Please consult your Authorised Dealer or Power Equipment Account Manager for all technical information.
