Yanmar
1GM10
GM/YM Series
Yanmar Australia

Engine Specifications

Application

Sailing Engine

Power Output (HP)

9

Power Output (kW)

6.6

Rated Speed

3600 RPM

Displacement

0.318L

Cylinders

1

Bore x Stroke

75mm x 72mm

Aspiration

Natural

Dry Weight

71kg

Dimensions

554mm x 410mm 485mm

Controls

Mechanical

Certifications

RCD 2, EPA Tier 2, BSO II, EMC

Series Information

GM/YM SERIES

With the largest displacement and smallest dimensions in their class, these thoroughbred workhorses provide sure-fire auxiliary power for sailboats and durable primary power for small motorboats. The naturally aspirated new generation YM series continues the Yanmar tradition of providing boaters with superior technology – quiet and compact power that can be relied upon.

Yachtsmen looking for extra power without extra size and weight can find it in Yanmar’s new 1GM10 diesel engine. Yanmar have up-powered their popular 1GM model by 20% to re-create its trusty performance at a higher 6.7kW, with negligible change in size, weight and shape.

The GM/YM Series engines are available in both shaftdrive and saildrive configurations.

Best in Class Diesel Power

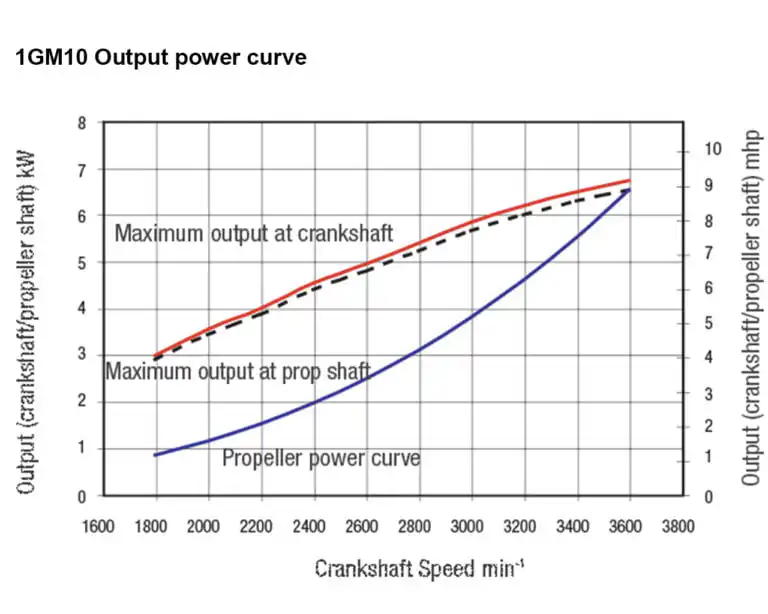

Now with more displacement, more torque, more amps, yet even quieter, with less smoke than ever, EPA Tier 2 emission regulations and BSO/SAV stage 2 compliant. The flat power curve allows you to choose the propeller size to best match your application.

More power, same size

Yachtsmen looking for extra power without extra size and weight can find it in Yanmar’s new 1GM10 diesel engine. Yanmar have up-powered their popular 1GM model by 20% to re-create its trusty performance at a higher 6.7kW, with negligible change in size, weight and shape. Its only gain is a heftier flywheel to maintain smooth running and easy starting.

The 1GM10C Saildrive configuration feature patented double-seal safety technology with audio warning device. The Yanmar design helps to eliminate shaft vibrations, unnecessary noise, alignment, and space problems, thanks to their direct power-to-prop configuration. Boat balance, manoeuvrability and thrust are improved for a better boating experience.

Standard Engine Package

  • Flexible engine mounts
  • Exhaust water mixing elbow (L-type)
  • 12V – 40A alternator
  • A type panel



Available Options/Accessories

  • Kingston cock/sea water filter
  • New B20 instrument panel
  • Extension wire harness (3m)
  • Electric type bilge pump (12V)
  • Battery switch
  • Push-pull type remote control cable
  • Side mount or top mount single control head
  • Spare parts kit
  • Special overhauling tools (for engine & marine gear)

Compatible Products

Yanmar SD25 Saildrive

Please contact your nearest dealer or Power Equipment Account Manager for a full list of available options, installation requirements and compatible products.
