Power Profile

Yanmar Australia

Yanmar Australia understands that achieving optimal boat performance while conserving fuel is paramount for modern work boat owners. This dedicated marine diesel engine boasts exceptional torque-rise characteristics, ensuring reliable performance during high-speed operations and under heavy loads. Its robust design incorporates quality components derived from Yanmar’s substantial marine engine background, catering to the demands of the marine industry.

Download the PDF


Like and Share:



Commercial Marine

Engine Brand:


Engine Model:

Yanmar 6HA2M-WDT

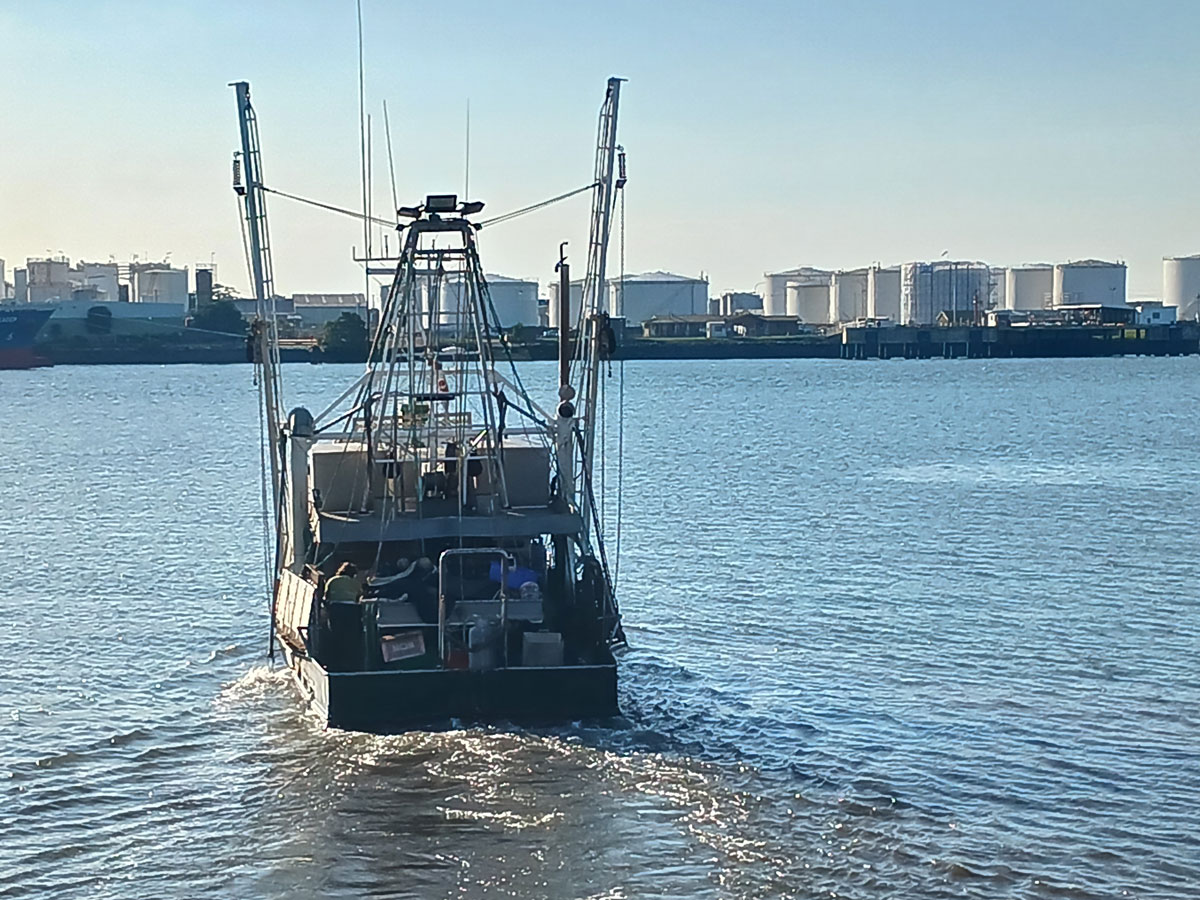

Application: Commercial - Trawler

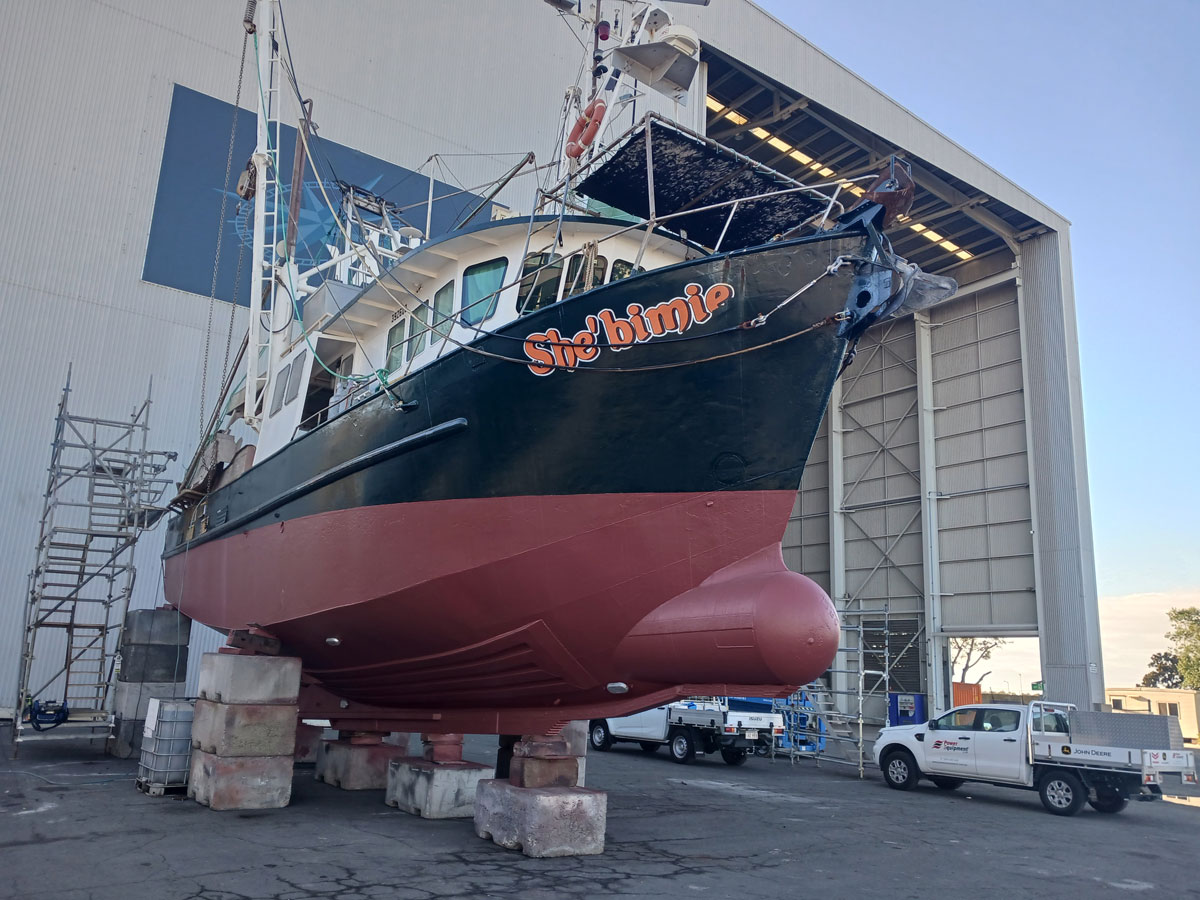

Vessel Construction: Steel – Mono Hull
Vessel Name: SHE-BIMIE
Length (LWL / LOA): 14.5 M LOA
Weight: 75 Tonnes

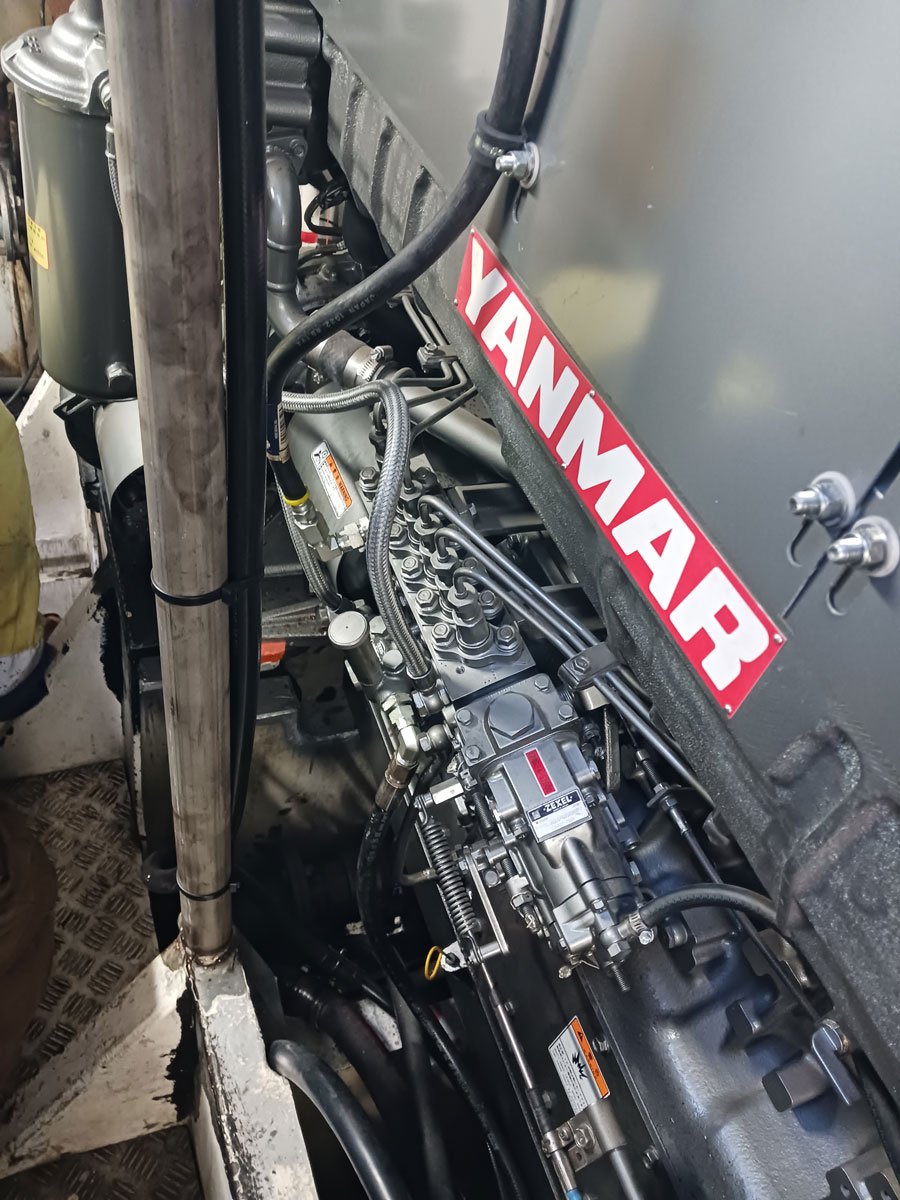

Engine Model: Yanmar 6HA2M-WDT
Engine Power Rating: 298kW (405MHP ) @ 1950 RPM
Gear Ratio and Model: 4.17:1 - Twin Disc MG5114DG
Cruise Speed: 7.9 KTS @ 1600 RPM
Top Speed: 10.5 KTS @ 2000 RPM
Propeller Size: 48 x 45 x 4

Disclaimer: Power Equipment provides this Performance Report for general information only. This data is accurate only as to the exact date, time and specifications set out in this Report. YANMAR makes no warranties as to the performance or fuel consumption of any boat equipped with a Yanmar engine as numerous factors affect actual performance of an engine.
