Model: RAKU 48

Like and Share:



Pleasure Craft

Engine Brand:


Engine Model:

4JH5CE - SD60

Application: Pleasure Craft
Vessel Construction: Catamaran – Foam/Glass Composite
Vessel Name: S.V. MINT
Length (LWL / LOA): 14.6 MTR (48”) LOA
Weight: 8.5 Tonnes Lightship / 10.5 Tonnes Fully Provisioned

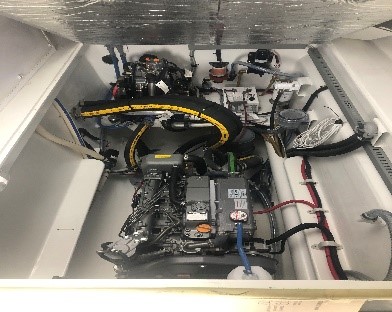

Engine Model: Yanmar 4JH5CE - SD60
Engine Power Rating: 39.6kW (54mhp) @ 3000RPM
Drive Configuration: Sail Drive x 2
Gear Ratio and Model 2.23:1 – Yanmar SD60
Electronic Control Type: Teleflex Morse KE 4
Cruise Speed: 8 Knots @ 2000 RPM
Propeller Size: Gori 3 Blade Folding Propeller 18” x 14” x 3

Disclaimer: Power Equipment provides this Performance Report for general information only. This data is accurate only as to the exact date, time and specifications set out in this Report. YANMAR makes no warranties as to the performance or fuel consumption of any boat equipped with a Yanmar engine as numerous factors affect actual performance of an engine.
