Application:

Commercial Marine

Engine Brand:

Yanmar

Engine Model:

6HA2M-WDT

Application: Commercial – Survey / Patrol Vessel
Vessel Construction: Cold Moulded Wood

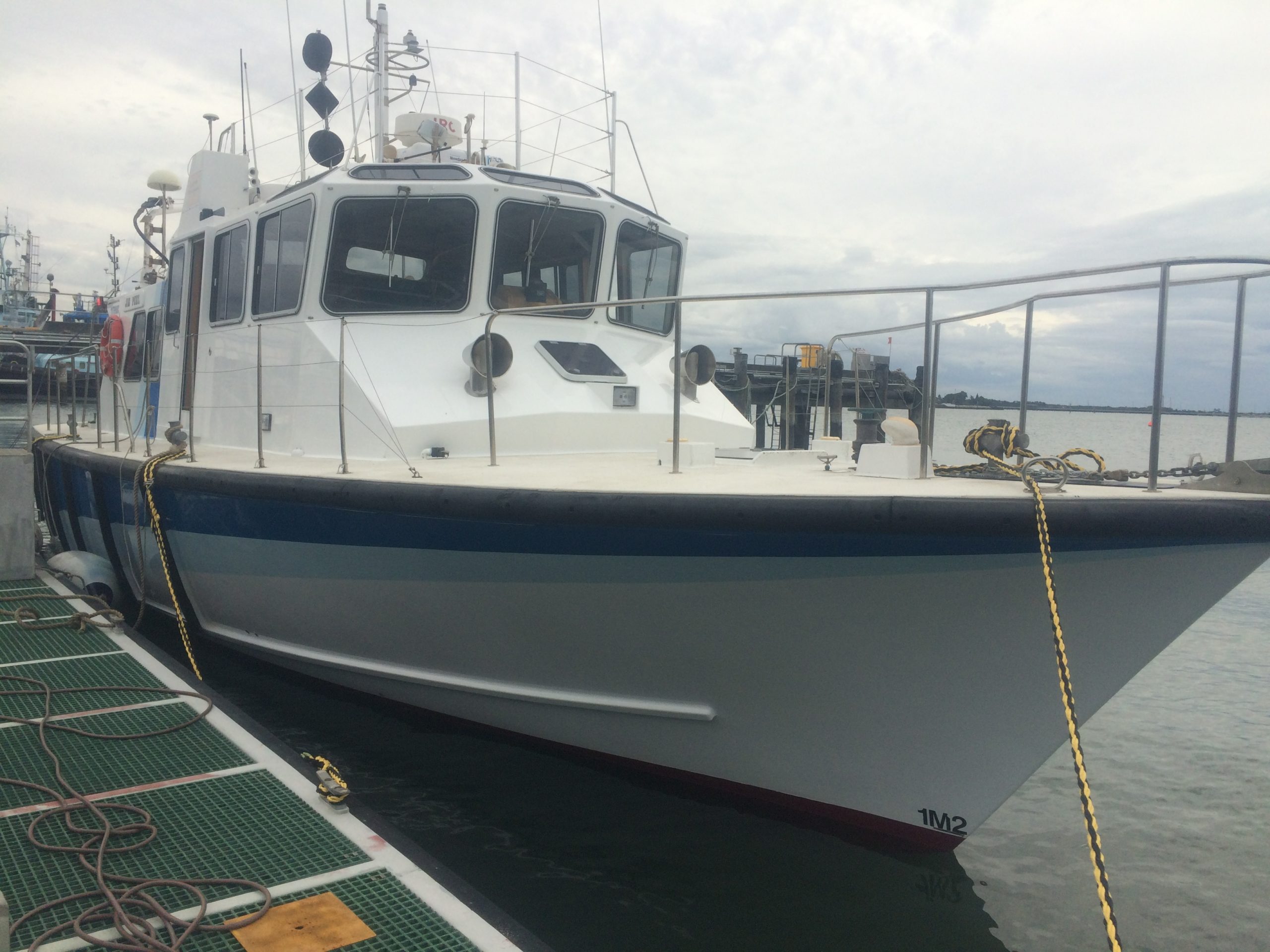

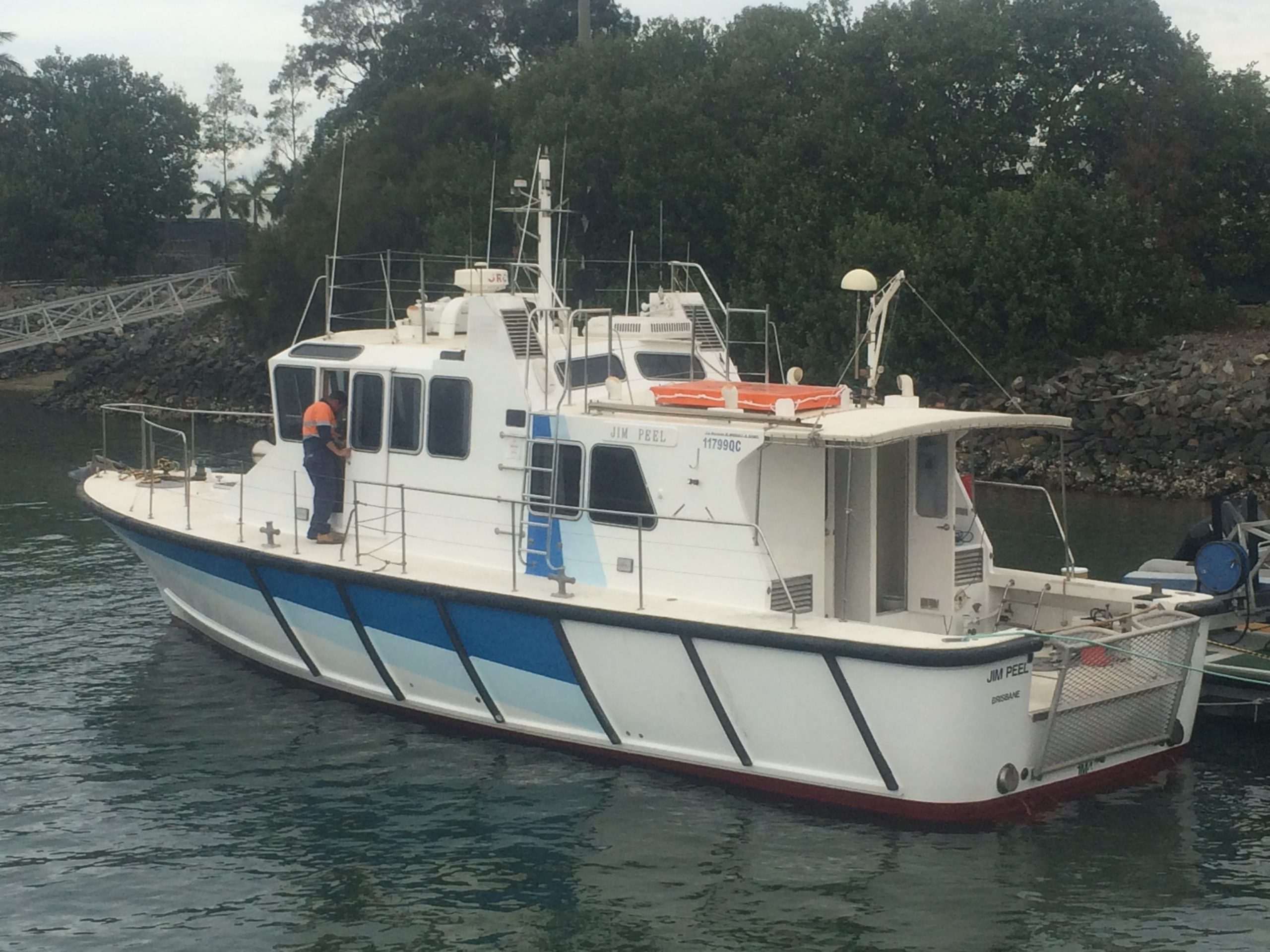

Vessel Name: Jim Peel
Length (LWL / LOA): 15.8 meters LOA
Weight: 30 T

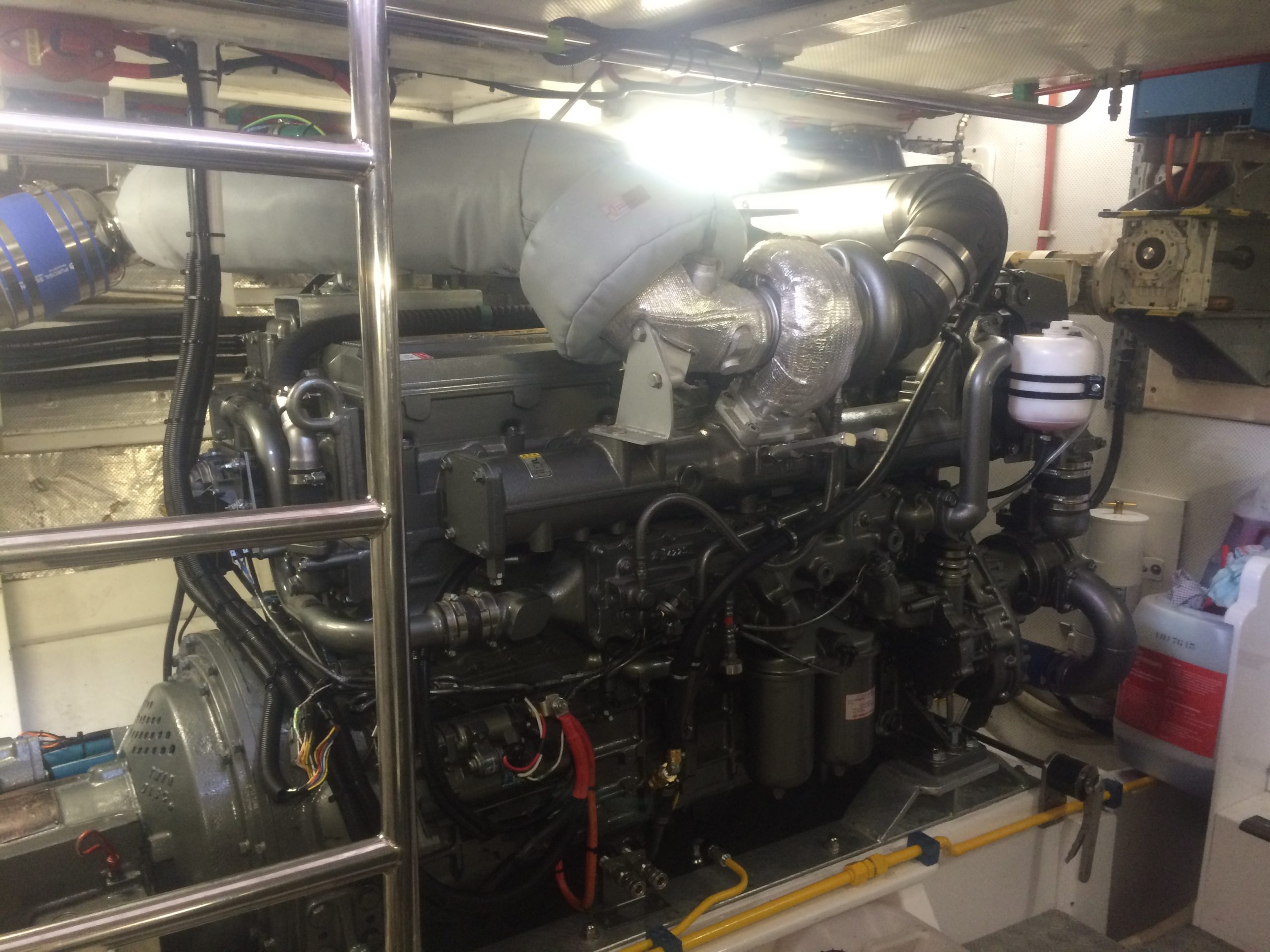

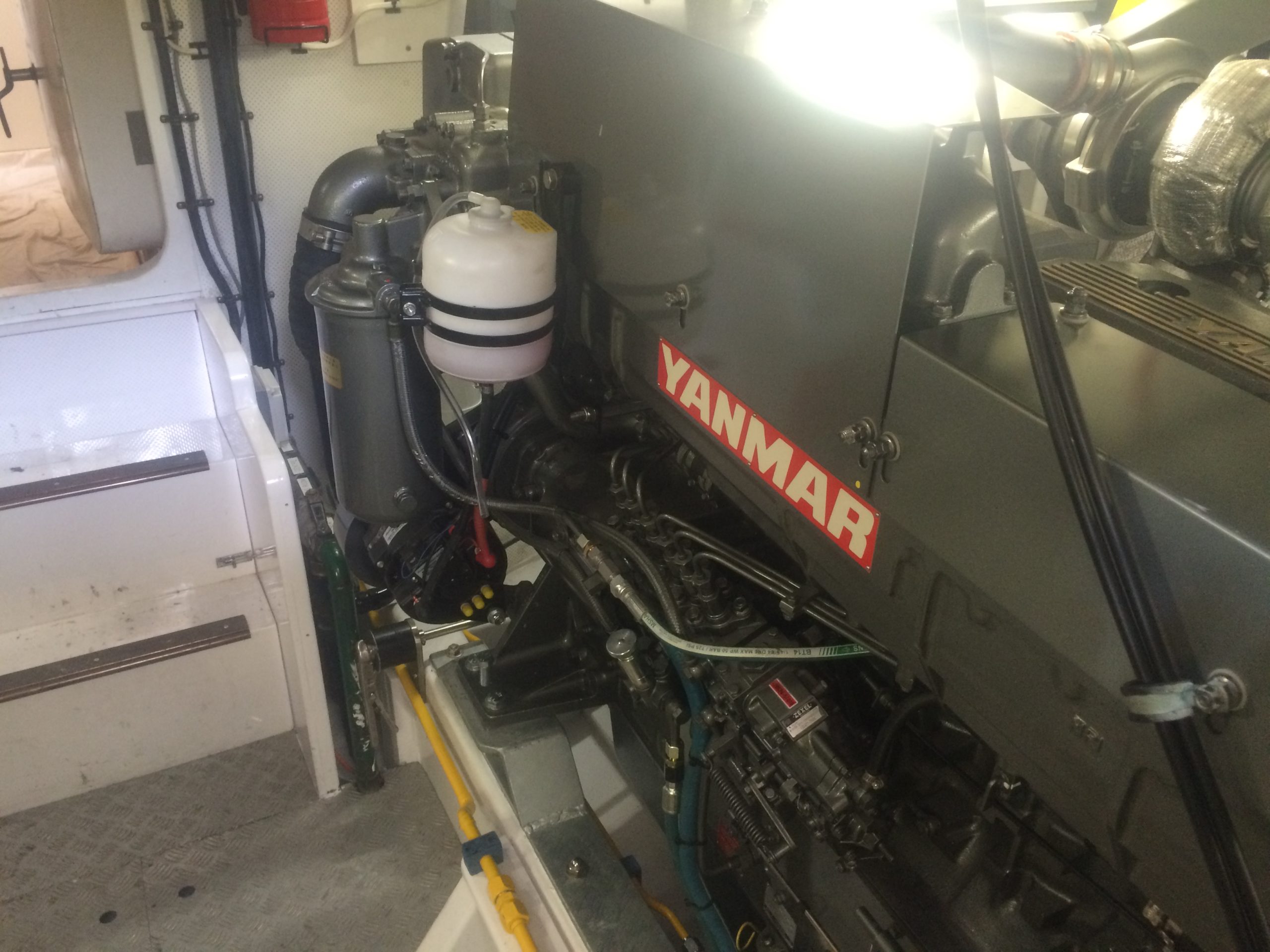

Engine Model: Yanmar 6HA2M-WDT x 2
Engine Power Rating: 298kW (405mhp) @ 1950 RPM
Drive Configuration: Twin Shaft with Fixed Pitch Propellers
Gear Ratio and Model: 1.5:1 – Twin Disc MG5090A
Electronic Control Type: NA
Cruise Speed: 14.5 kts @ 1800 RPM
Top Speed: 17.2 kts @ 2000 RPM
Propeller Size: 30 x 30.5 x 4 blade

Disclaimer: Power Equipment provides this Performance Report for general information only. This data is accurate only as to the exact date, time and specifications set out in this Report. YANMAR makes no warranties as to the performance or fuel consumption of any boat equipped with a Yanmar engine as numerous factors affect actual performance of an engine.
