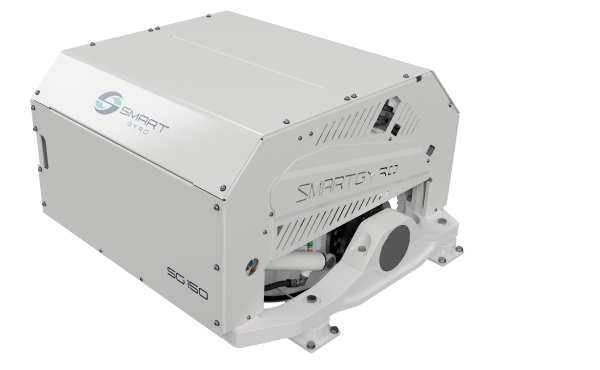

The Smartgyro SG150 is the gyro stabilizer of choice for a range of boats
from 80-95 ft (25-30m). Ideal for both new builds and refit installations, the
stabilizer can be fully serviced on-board the vessel without the need to lift
out for maintenance, ensuring significant time and cost savings.
Target Boat
80 - 95ft or up to 100 tonnes
Maximum Rated Speed
5,000 RPM
Angular Momentum
37,000 Nms at max. rated speed
Anti-Rolling Torque
76,000 Nm at max. rated speed
Input Voltage (AC)
380V nominal, 50/60 Hz, three phase
Input Voltage (DC)
24 Vdc
Envelope Dimensions
1.36 x 1.41 x 1.02 m [53.5 x 55.5 x 40.1 in]
Weight
1890 kg [4167 lbs]
Whether refitting a classic cruiser or building a modern yacht, Smartgyro’s unique modular construction makes the process seamless.
By designing a unit that can be fully disassembled, Smartgyro has created new installation opportunities in vessels with small access spaces.
EXISTING BOATS
The base frame can be broken down into four parts to allow for installation through narrow access hatches, making refitting easier and more cost-efficient.
NEW BOATS
The unit’s compact dimensions allow boat builders to easily integrate Smartgyro into vessel design, including taking advantage of empty hull space.
From installation to maintenance and beyond, we are committed to keeping our customers on the water.
Smartgyro recreational units come with unique
3 year / 2,000 hours warranty coverage for unrivaled peace of mind.
Smartgyro boasts a worldwide distribution, support and service network backed by our strategic partner YANMAR and its companies, including VETUS, Maxwell, and Flexofold.
