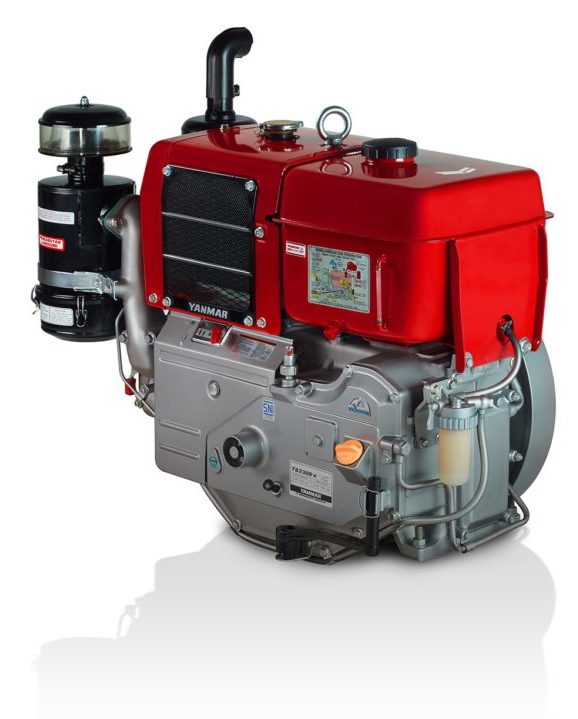

Yanmar
TS230
TS230

Engine Specifications

Max Output (HP)

22.7 HP @ 2200 RPM

Max Output (kW)

16.9 kW @ 2200 RPM

Standby Output (kVA)

14.0 kVa @ 1500RPM

Engine Type

Horizontal water-cooled

Cylinders

1

Fuel Type

Diesel

Variable Speed

Yes

Fixed Speed

Yes

Displacement

1.132 Litres

Bore x Stroke

112 x 115 mm

Combustion

Direct Injection

Aspiration

Natural

Irrigation Pack available

No

Powerpack available

No

Superior power, superior reliability

The Yanmar TS multifunction diesel engines offer tough superior power with low running and maintenance costs.

  • Horizontal 4-cycle water cooled diesel engine
  • Direct fuel injection produces dynamic and superior power
  • Superior technology ensures maximum fuel efficiency
  • Better lube system improves reliability and reduces maintenance costs
  • Less vibration and low noise levels
  • Easy operation, simple servicing



Noise reduction

The noise and vibration reductions are achieved with the application of dual balancer systems along with Yanmar’s helical gear





Direct injection and bigger displacement

Yanmar’s unique and superior direct injection combustion system, combined with bigger displacement, delivers immediate and bigger power while maintaining maximum fuel efficiency.

* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions. Please consult your Authorised Dealer or Power Equipment Account Manager for all technical information.
