Yanmar

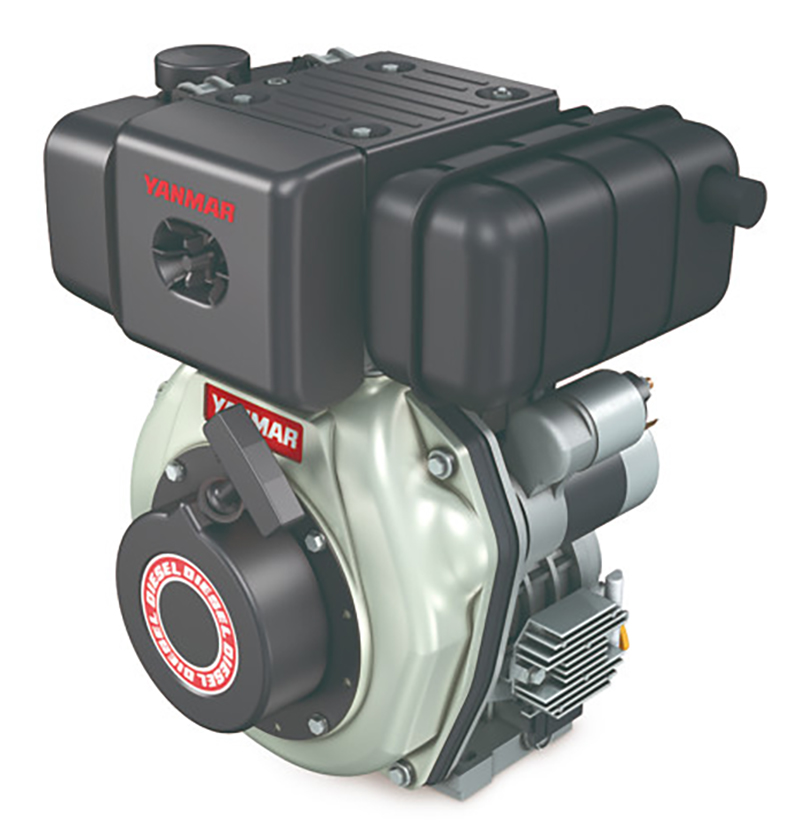

L70N
L70N

Engine Specifications

Max Output (HP)

6.6 HP @ 3600 RPM

Max Output (kW)

4.9 kW @ 3600 RPM

Standby Output (kVA)

4.5 kVa @ 3600 RPM

Engine Type

Air-cooled

Cylinders

1

Fuel Type

Diesel

Variable Speed

Yes

Fixed Speed

Yes

Displacement

0.320 Litres

Bore x Stroke

78 x 67 mm

Combustion

Direct Injection

Aspiration

Natural

Irrigation Pack available

No

Powerpack available

No

The legendary L-Series engine continues to reign

Since 1959, Yanmar has been producing a wide range of compact air-cooled diesel engines with total production exceeding 1.5million engines. Today, the L Series air-cooled diesel engines are powering leading-edge mobile and stationary off-highway equipment around the world.



Exceeding power and environmental expectations

Designed with Yanmar’s proprietary direct injection technology, maximum combustion efficiency is realised through the ideal match between the combustion chamber and injection system. This means a powerful, yet environmentally friendly engine.

Easy installation and low fuel consumption

Keeping with the traditional compact design, the L Series engines are simple to install, particularly in cramped or hard to access spaces, without the need to sacrifice power and performance. The direct injection technology allows vastly improved fuel efficiency, which means lower running costs for you in the world of rising fuel prices.



Quick and easy starting

A special auto-return decompressor and Yanmar’s very own efficient combustion system breezes through starting up each and every time. An electric starting system is available as an option to get you up and running in just a push of a button.

* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions. Please consult your Authorised Dealer or Power Equipment Account Manager for all technical information.
