John Deere
4045AFM85

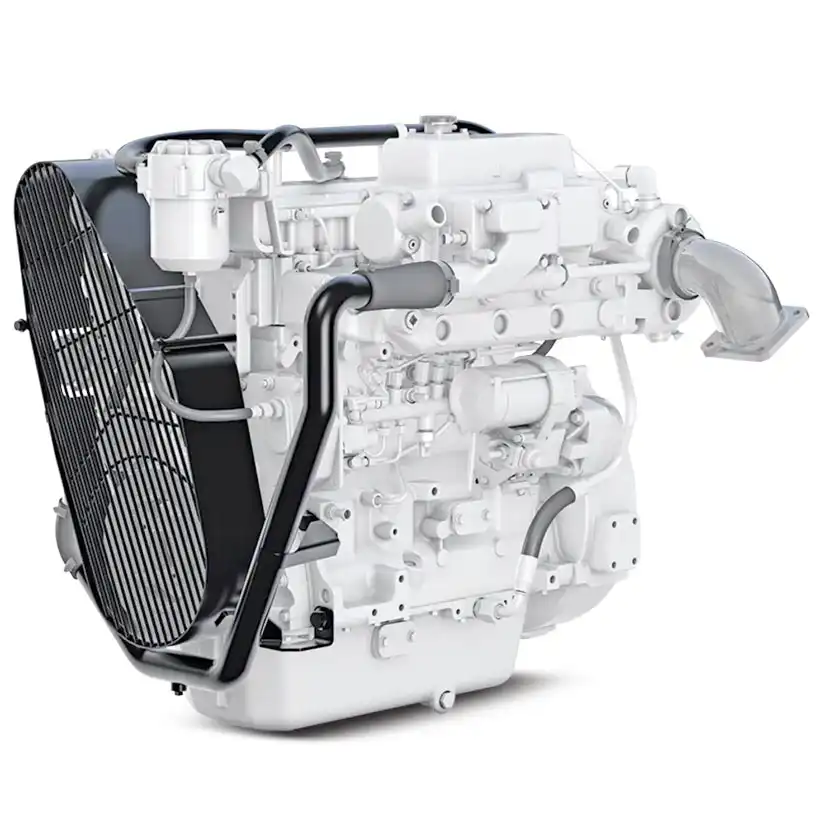

John Deere Diesel Engine

Engine Specifications

Application

Sailing Engine, Powerboat Engine, Commercial Engine

Power Output (HP)

225

Power Output (kW)

167.7

Rated Speed

2300 RPM (M1)

Displacement

4.5L

Cylinders

4

Bore x Stroke

107mm x 127mm

Aspiration

Turbocharged

Alternator

Dry Weight

578kg

Dimensions

1105mm x 964mm x 864mm

Controls

Certifications

EPA Tier 3, IMO MARPOL Annex Tier II

Series Information

Propelled performance

The John Deere 4045A PowerTech™ range of marine engines gives commercial and pleasure craft owners a blend of pure power and rugged durability – things you expect from a John Deere. With a power range from 160HP (119kW) to 225HP (168kW), the 4045AFM85 range offers the right engine for just about any application.

Propelled performance

The John Deere 4045A PowerTech™ range of marine engines gives commercial and pleasure craft owners a blend of pure power and rugged durability – things you expect from a John Deere. With a power range from 160HP (119kW) to 225HP (168kW), the 4045AFM85 range offers the right engine for just about any application.





Features:

  • Excellent airflow through 4-valve cylinder head delivers greater low-speed torque and better transient response time
  • Replaceable wet-type cylinder liners
  • High pressure common rail (HPCR) system provides high performance, excellent fuel economy and low emissions
  • Integrated components eliminate external hoses and fittings
  • Hassle free maintenance and servicing with access from both sides of the engine
  • The closed cooling system in keel-cooled engine option eliminates the need for a sea strainer, seawater pump or anodes. Heat exchanger option offers a lighter, more compact, and simpler engine installation
  • Next-gen ECU provides advanced fault code diagnostics and customizable engine protections to ensure reliability and uptime
  • High torque provides excellent control and manoeuvring
  • Lower rated propulsion RPM reduces vibration and noise for improved comfort

Nothing runs like a Deereâ„¢

John Deere PowerTech™ engines are as powerful and dependable in the water as they are on land. Our marine engines share the same reputation for performance and reliability that their agricultural and industrial counterparts have enjoyed for decades. They are built for long life, reliable performance, fuel efficiency, quiet operation, ease of access to major parts and simplified integration. Don’t take our word for it, find out why John Deere is the powerful and reliable choice.

* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions. Please consult your Authorised Dealer or Power Equipment Account Manager for all technical information.
