Power Profile

Ocean Explorer
Yanmar Australia

Like and Share:



Commercial Marine

Engine Brand:


Engine Model:


Application: Commercial - Passenger Ferry
Vessel Construction: Aluminium Power Catamaran

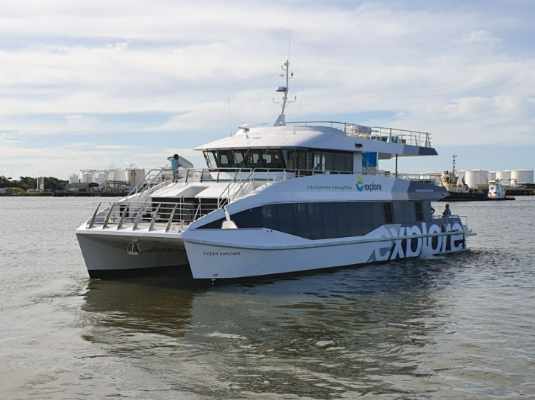

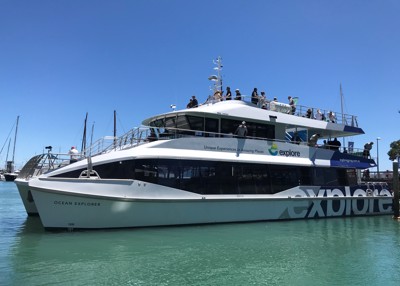

Vessel Name: Ocean Explorer
Vessel Owner: Explore Group – Whitsundays QLD
Length (LWL / LOA): 27.47 Meters
Weight: 160T GRT

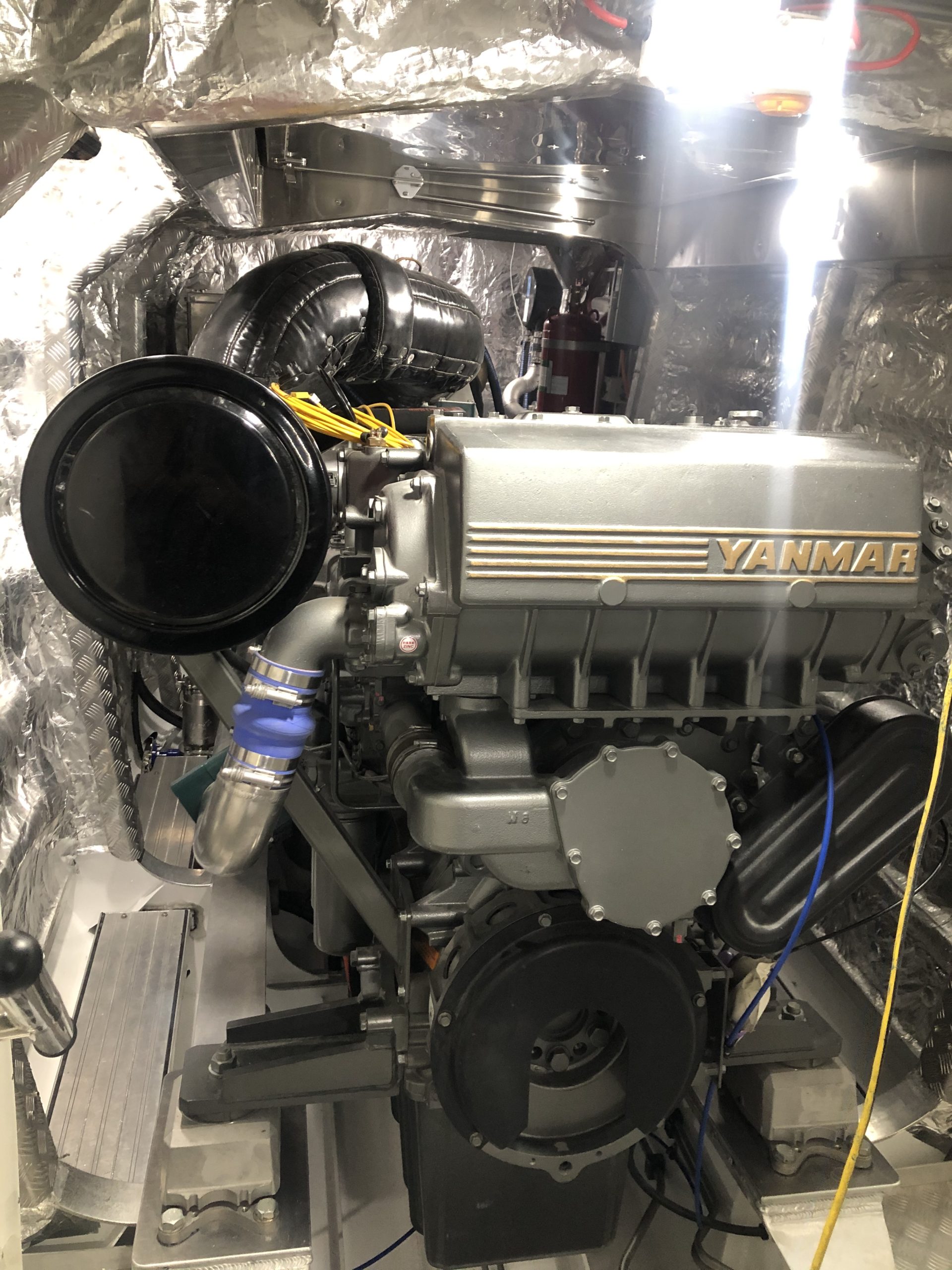

Engine Model: 6AYM-WGT
Engine Power Rating: 911MHP (670kW) @ 1938 RPM
Drive Configuration: Twin shaft with fixed propellers
Gear Ratio and Model: 2.03: ZF 2050
Electronic Control Type: ZF Micro Command – 4 stations – Main helm, wings, rear deck
Cruise Speed: 21.6 Kts @ 1800 RPM
Top Speed: 23.6 Kts @ 1950 RPM

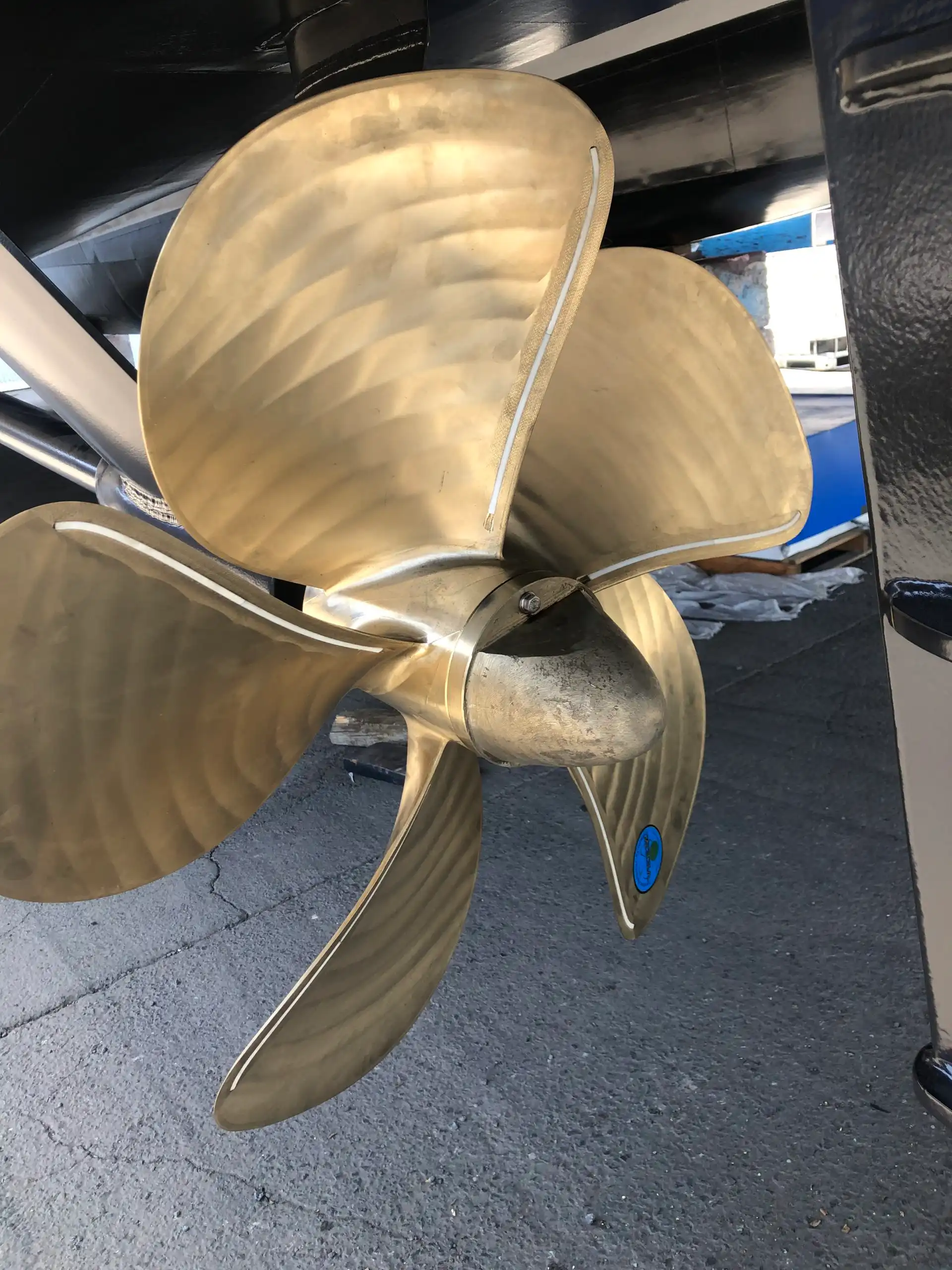

Propeller Size: 38” x 35” x 5 Blade – Veem Propellers

Disclaimer: Power Equipment provides this Performance Report for general information only. This data is accurate only as to the exact date, time and specifications set out in this Report. YANMAR makes no warranties as to the performance or fuel consumption of any boat equipped with a Yanmar engine as numerous factors affect actual performance of an engine.
